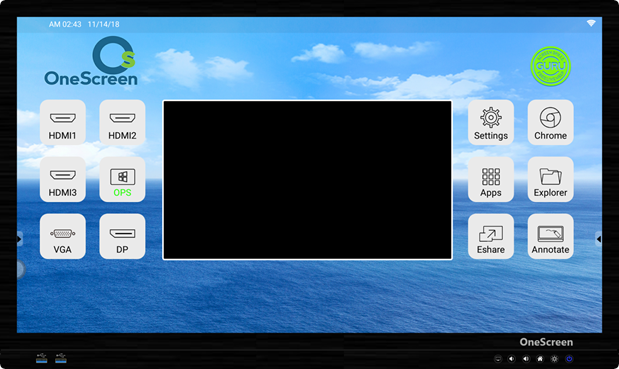

1. Home Screen

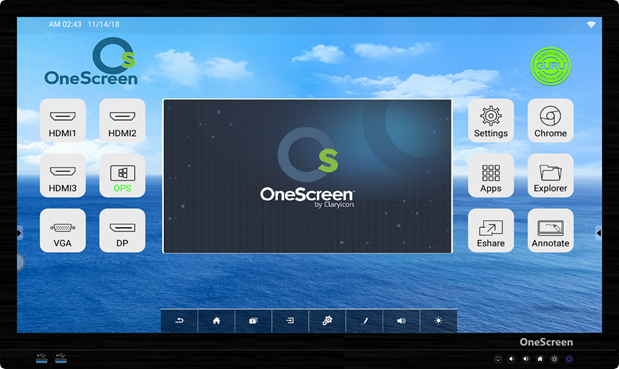

Pressing OneScreen home button will take you to the Android Home Screen as shown below. Here you will see the time, date, connectivity status and other icons whose purpose is shown in the table.




Sr.

Icon

Function

1.

Pressing the GURU icon will connect you to the Support Team via Audio/Video. Please ensure that you have a microphone/Camera connected to OneScreen.

2.

Pressing this icon will make the HDMI 1 as the active input source. Once selected, tap on the mini screen to switch to the respective source.

3.

Pressing this icon will make the HDMI 2 as the active input source. Once selected, tap on the mini screen to switch to the respective source.

4.

Pressing this icon will make the HDMI 3 as the active input source. Once selected, tap on the mini screen to switch to the respective source.

5.

Pressing this icon will make the On-Board PC Source (OPS) as the active input source. Once selected, tap on the mini screen to switch to the respective source.

6.

Pressing this icon will make the VGA as the active input source. Once selected, tap on the mini screen to switch to the respective source.

7.

Pressing this icon will make the Display Port (DP) as the active input source. Once selected, tap on the mini screen to switch to the respective source.

8.

Pressing on this icon will launch the whiteboard application. This application allows the user to perform basic annotation. The application is shown on page no. 17.

9.

Pressing on this icon will take you to the Chrome Browser. The Chrome Browser is shown on page no. 17.

10.

Pressing on this icon will take you to the Android Applications. The Applications window is shown on page no. 18.

11.

Pressing on this icon will take you to the file Explorer. Here you can access the internal storage and external storage devices. The Explorer window is shown on page no. 18.

12.

Pressing on this icon will launch the Eshare Application. This application is used for the wireless screen mirroring. The Eshare application is shown on page no. 19.

13.

Pressing on this icon will take you to the settings menu. The settings menu is shown on page no. 19.



2. Bottom/ Side Toolbar


Swiping up from the bottom of the screen bring the toolbar which can also be accessed by pressing the arrows keys on either side of OneScreen.





Sr.

Icon

Function

1.

This button will take you to the previous window.

2.

This button will take you to the home screen.

3.

This button will show the running applications. Users can close individual or all applications.

4.

This button will take the user to the source menu.

5.

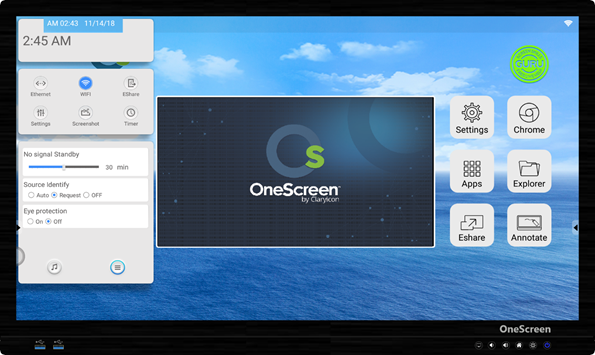

This button takes the user to the settings side panel.  The side panel is shown below.

6.

This button launches the whiteboard application. This application allows the user to perform basic annotation.

7.

Press this button to increase or decrease the volume.

8.

Press this button to increase or decrease the brightness.



3. Applications & Menus

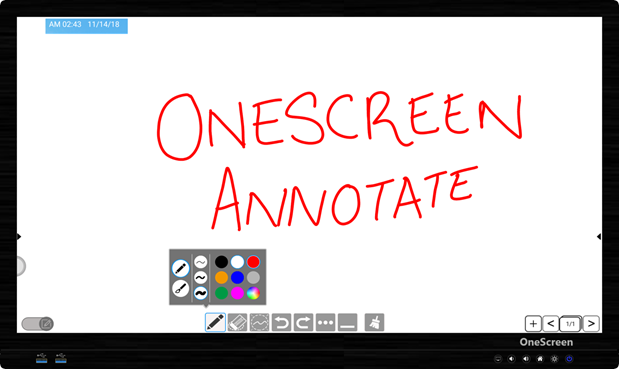

Whiteboard Application

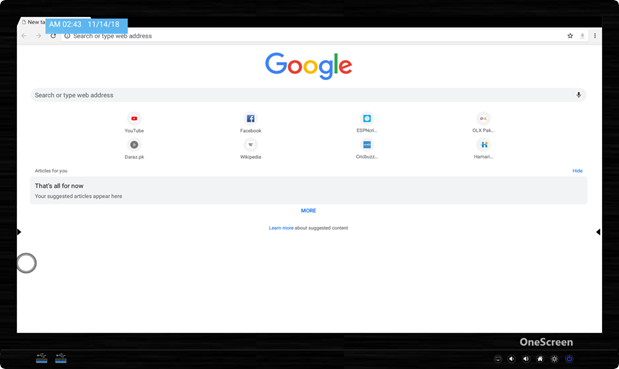

Google Chrome

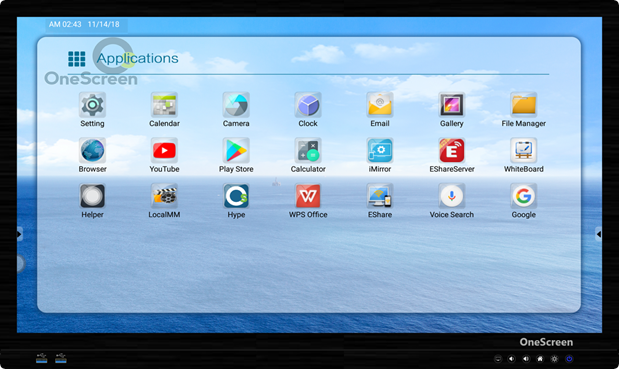

Applications Window

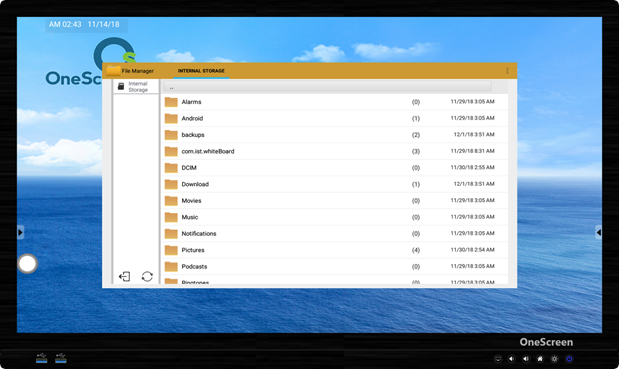

File Explorer

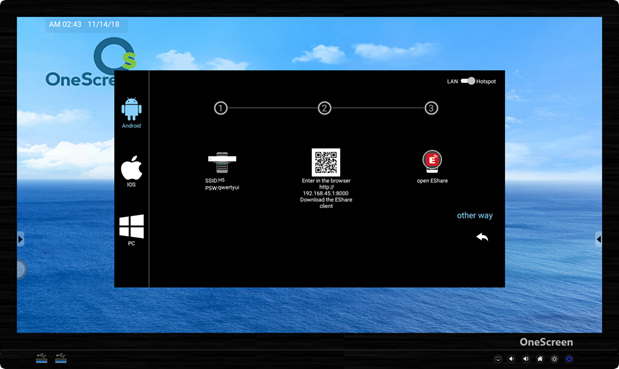

Eshare (Wireless Screen Sharing Application)

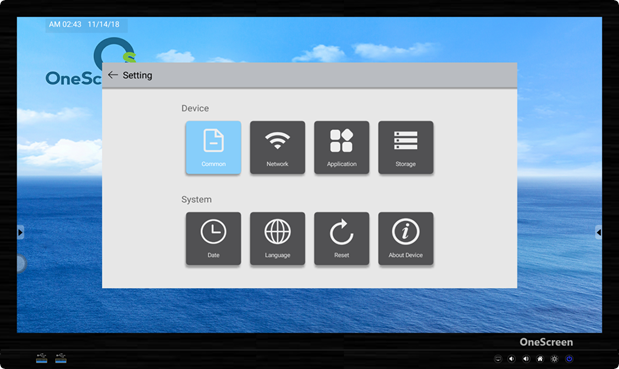

Settings Menu



Sr.

Icon

Function

1.

Modify device and user settings.

2.

View and manage connectivity settings.

3.

View, disable and uninstall applications.

4.

View storage information.

5.

Modify date and time.

6.

Language settings can be changed from here.

7.

Reset device to factory settings.

8.

View hardware and software information and perform software upgrades.
